Replacing Time-Consuming Manual Deburring on a Brass Bushing

Sep 11, 2017


A mechanical engineering company was deburring the bores in this bushing manually. What made the deburring difficult was the fact that the bores were located in the lubrication groove. The task was to deburr the outer and the inner bore edge of these cross bores automatically.

deburring, brass deburring, manual deburring, brass bushing deburring, deburring tool

Application Details:

  • Outer diameter: Ø144.0 mm
  • Inner diameter: Ø130.0 mm
  • Crossbore diameter: Ø6.0 mm
  • Material: Brass
deburring solution, deburring brass, brass bushing deburring


Tool: COFA6/6.0/H

Blade: GH-C-M-0002

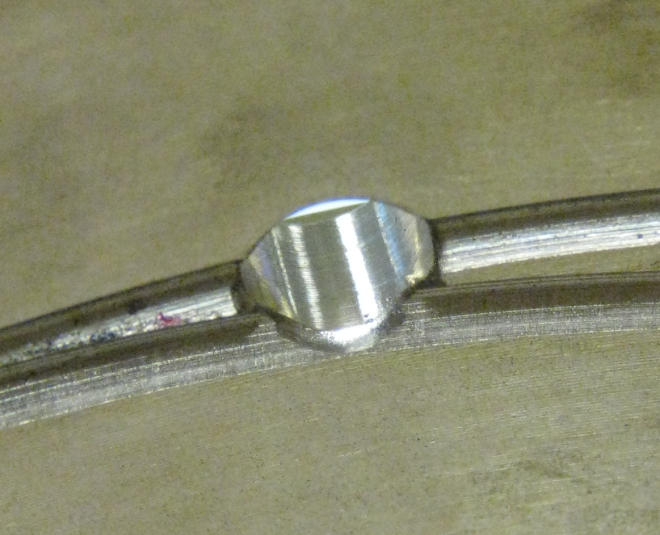

The difficulty to deburr the bores thouroughly lies in interior of the bushing. These grooves put high demands on the blade. This is why low cutting values have to be applied. The blade has to be given enough time to follow the bore edge.

Machining parameters:
Working speed: 500 rev./min.
Working feed: 0.1 mm/rev.
Coolant: external coolant


Time-consuming manual deburring was replaced with the HEULE COFA tool for time-saving results.

Interested in the COFA tool to replace your manual deburring process? Visit the COFA product page for more info.
